| Процесор, тип: | Intel |
| Чипсет: | Intel Z790 / Intel® Z790 Express Chipset |
| Сокет: | LGA1700 |
| Памет, тип: | DDR5 |
| Памет, честота: | 4000 MHz / Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Памет, слотове: | 4 |
| Максимална памет: | 192 GB |
| Твърд диск, характеристики: | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB); - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB); - 6 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Raid: | Да / RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 |
| Мрежа: | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Безжична мрежа: | Да |
| Звук: | Realtek® ALC1220-VB CODEC; High Definition Audio; 2/4/5.1/7.1-channel; 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out |
| Слотове: | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed,be sure to install it in the PCIEX16 slot.; Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4; (PCIEX4_1/PCIEX4_2) |
| Слот М.2: | 4 |

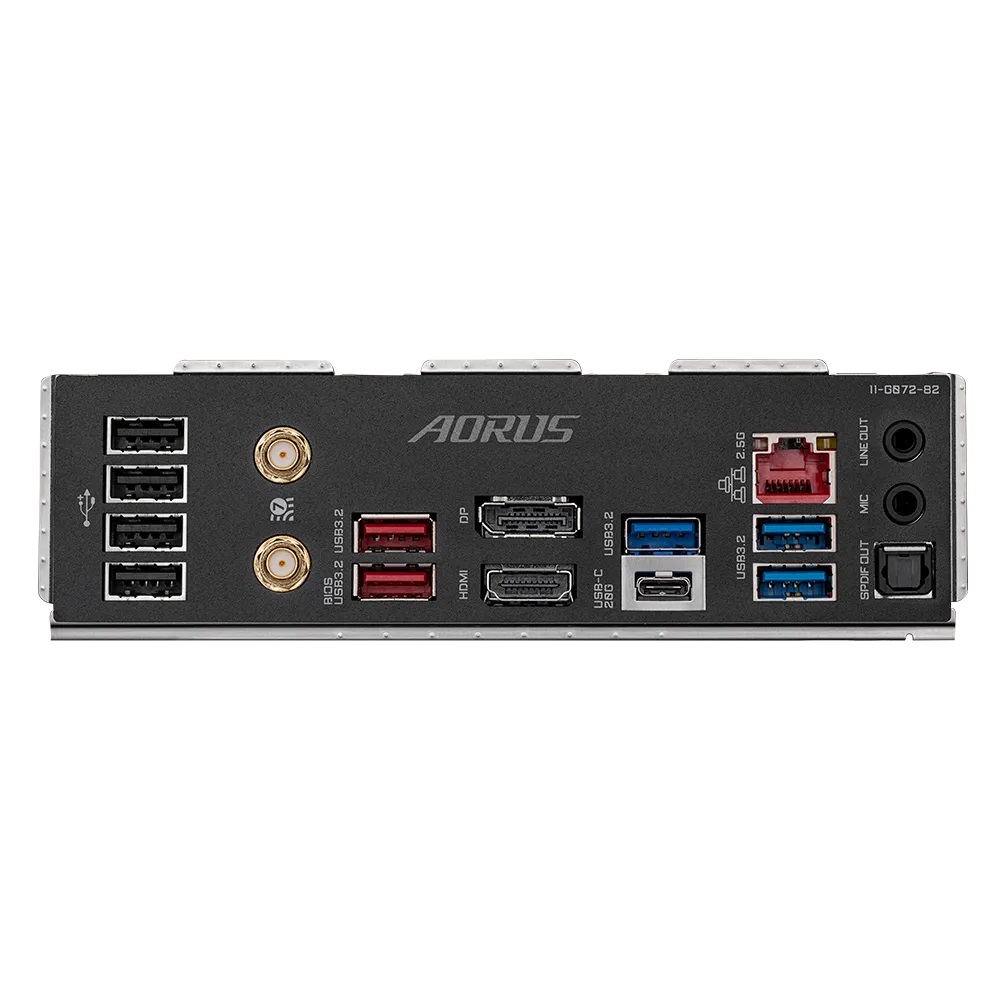

| Портове: | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (2T2R) jk; 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 2 x audio jacks |
| BIOS: | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Други: | MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.0); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.3; - Support for 11be 320MHz wireless standard; (Actual data rate may vary depending on environment and equipment.); Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10); Wi-Fi 7 channels on 6GHz band availability depends on individual country"s regulations. |
| Форм фактор: | ATX |
| Гаранция: | 36 м. |
