| Процесор, тип: | Intel |
| Чипсет: | Intel H470 / Intel® H470 Express Chipset |
| Сокет: | LGA1200 |
| Памет, тип: | DDR4 |
| Памет, честота: | 2933 MHz / Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Памет, слотове: | 2 |
| Максимална памет: | 64 GB |
| Твърд диск, характеристики: | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support); 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, and RAID 10; Intel® Optane™ Memory Ready |
| Raid: | Да / RAID 0, RAID 1, RAID 5, and RAID 10 |
| Мрежа: | Intel® GbE LAN chip (1 Gbit/100 Mbit) |
| Безжична мрежа: | Не |
| Звук: | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| Слотове: | 1 x PCI Express x16 slot, running at x16; 2 x PCI Express x1 slots; (The PCI Express slots conform to PCI Express 3.0 standard.); Supports up to ASPM L1.2 power management protocols. |

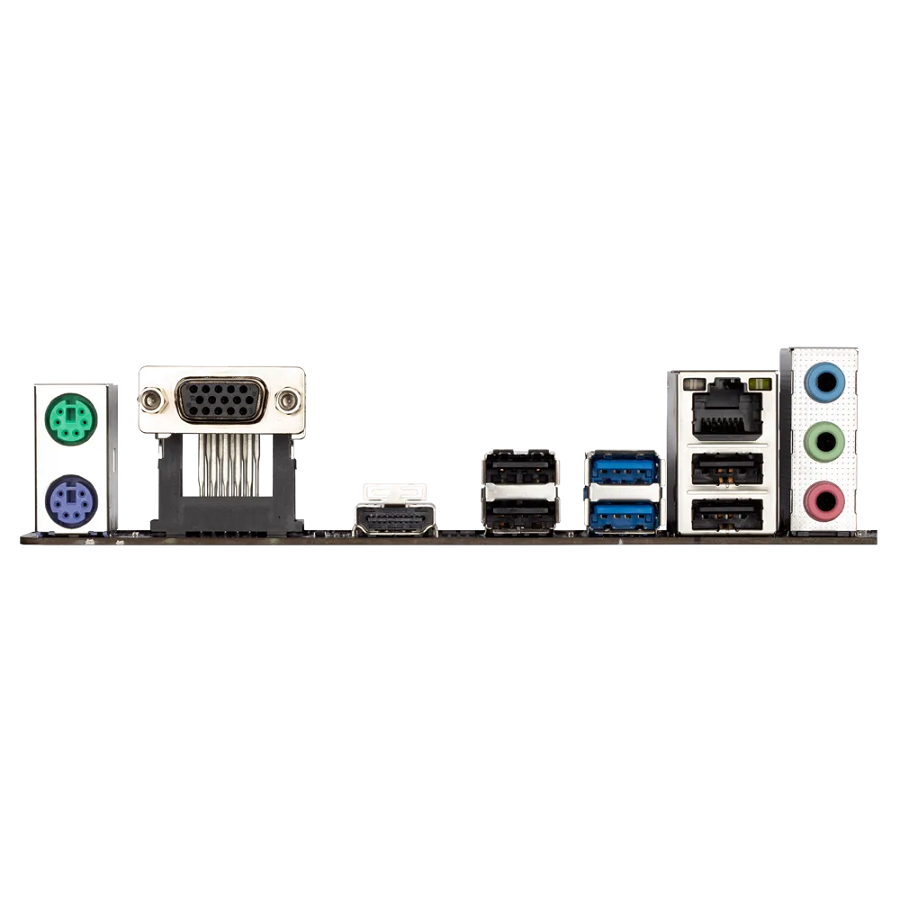

| Портове: | 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| BIOS: | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор: | Micro ATX |
| Гаранция: | 36 м. |
