| Процесор, тип: | Intel |
| Сокет: | LGA1700 |
| Памет, тип: | DDR5 |
| Памет, слотове: | 4 |
| Твърд диск, характеристики: | 5x M.2; M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices; M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices; M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices; 6x SATA 6G |
| Мрежа: | 2x Intel® 2.5Gbps LAN;Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Безжична мрежа: | Не |
| Звук: | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel |
| Слотове: | 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |

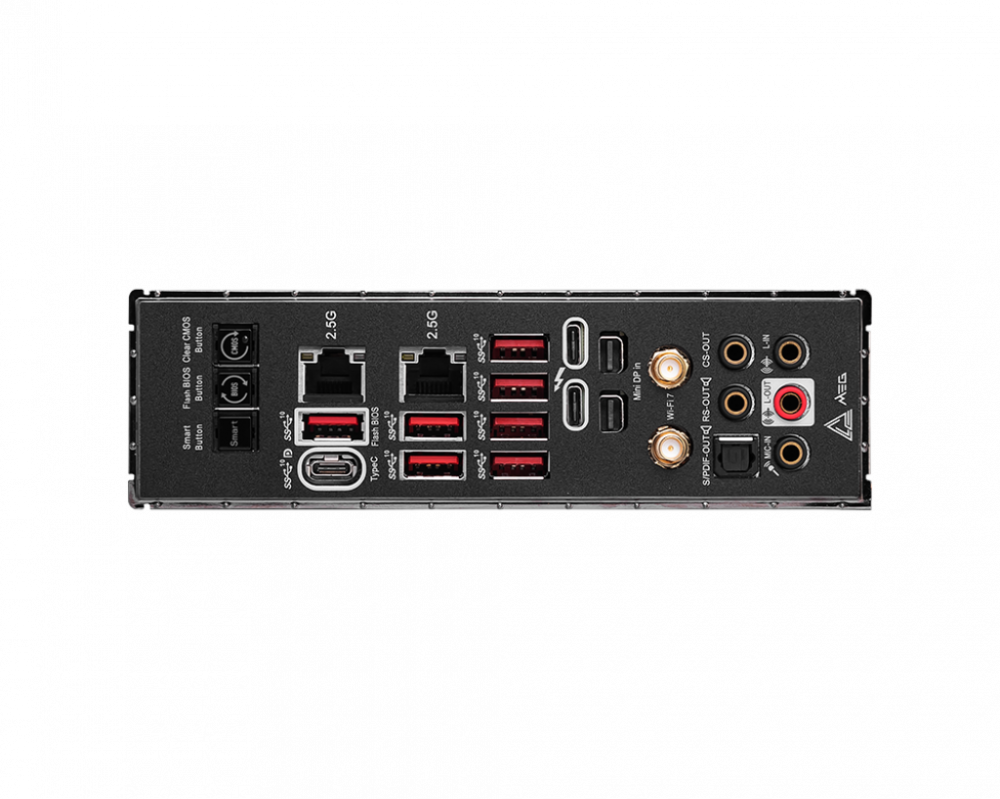

| Портове: | Clear CMOS Button; Flash BIOS Button; 2.5G LAN; 2.5G LAN; Thunderbolt 4 40Gbps (Type-C); Wi-Fi / Bluetooth; Audio Connectors; Smart Button; USB 3.2 Gen 2 10Gbps (Type-C Display port); USB 3.2 Gen 2 10Gbps (Type-A); Mini DisplayPort Input (for Thunderbolt passthrough); Optical S/PDIF-Out |
| Други: | ONBOARD THUNDERBOLT:Thunderbolt chip JHL8540; 2x Thunderbolt4 (USB-C) ports Q’ty; Supports up to 40Gbps transfer rate with Thunderbolt devices; Supports up to 20Gbps transfer rate with USB4 devices; Supports up to 10Gbps transfer rate with USB 3.2 devices; Supports up to 5V/3A,15W power charging; Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices; Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Форм фактор: | ATX / E-ATX,277mmx304.8mm |
| Гаранция: | 36 м. |
