| Процесор, тип: | Intel |
| Чипсет: | Intel Z890 / Intel® Z890 Express Chipset |
| Сокет: | LGA1851 |
| Памет, тип: | DDR5 |
| Памет, слотове: | 4 |
| Максимална памет: | 256 GB |
| Твърд диск, характеристики: | CPU;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Raid: | Да / RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 |
| Мрежа: | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Безжична мрежа: | Не |
| Звук: | Realtek® ALC1220 CODEC;* The front panel line out jack supports DSD audio.;ESS ES9118 DAC chip;Support for DTS:X® Ultra;High Definition Audio;2/4/5.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| Слотове: | CPU;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.;Chipset;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
| Слот М.2: | 1 |

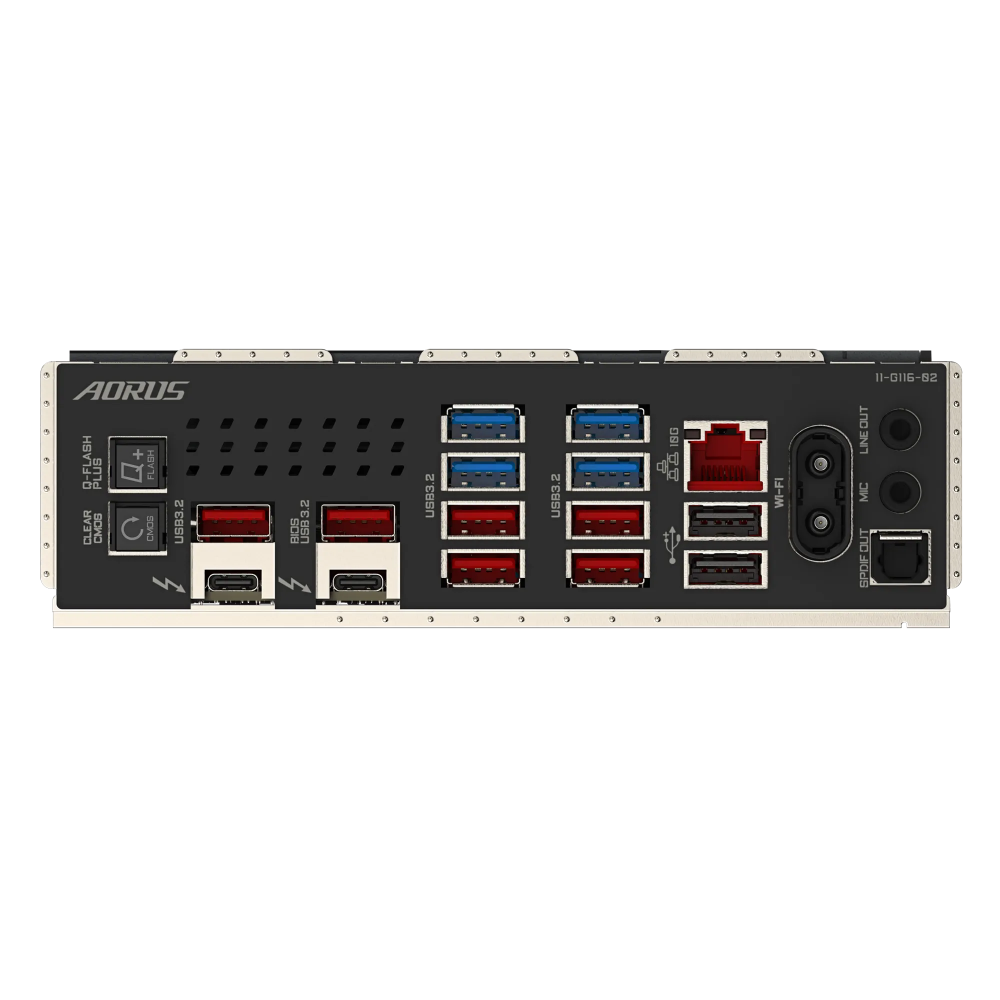

| Портове: | CPU;- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;*Support up to 40Gbps with Thunderbolt devices;*Support up to 20Gbps with USB4 devices;*Support up to 10Gbps with USB 3.2 devices;Chipset;- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset+USB 3.2 Gen 2x2 Hub;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;Chipset+2 USB 3.2 Gen 1 Hubs;- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers);Chipset+2 USB 2.0 Hubs;- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| BIOS: | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор: | ATX / ATX Form Factor; 30.5cm x 24.4cm |
| Гаранция: | 36 м. |
