| Процесор, тип: | AMD |
| Чипсет: | AMD X870 |
| Сокет: | Socket AM5 |
| Памет, тип: | DDR5 |
| Памет, честота: | 4400 MHz / Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE"s website for more information.) |
| Памет, слотове: | 4 |
| Максимална памет: | 256 GB |
| Твърд диск, характеристики: | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs;1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Raid: | Да / RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;RAID 0, RAID 1, and RAID 10 |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Безжична мрежа: | Да |
| Звук: | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 900/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset;- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Слот М.2: | 3 |

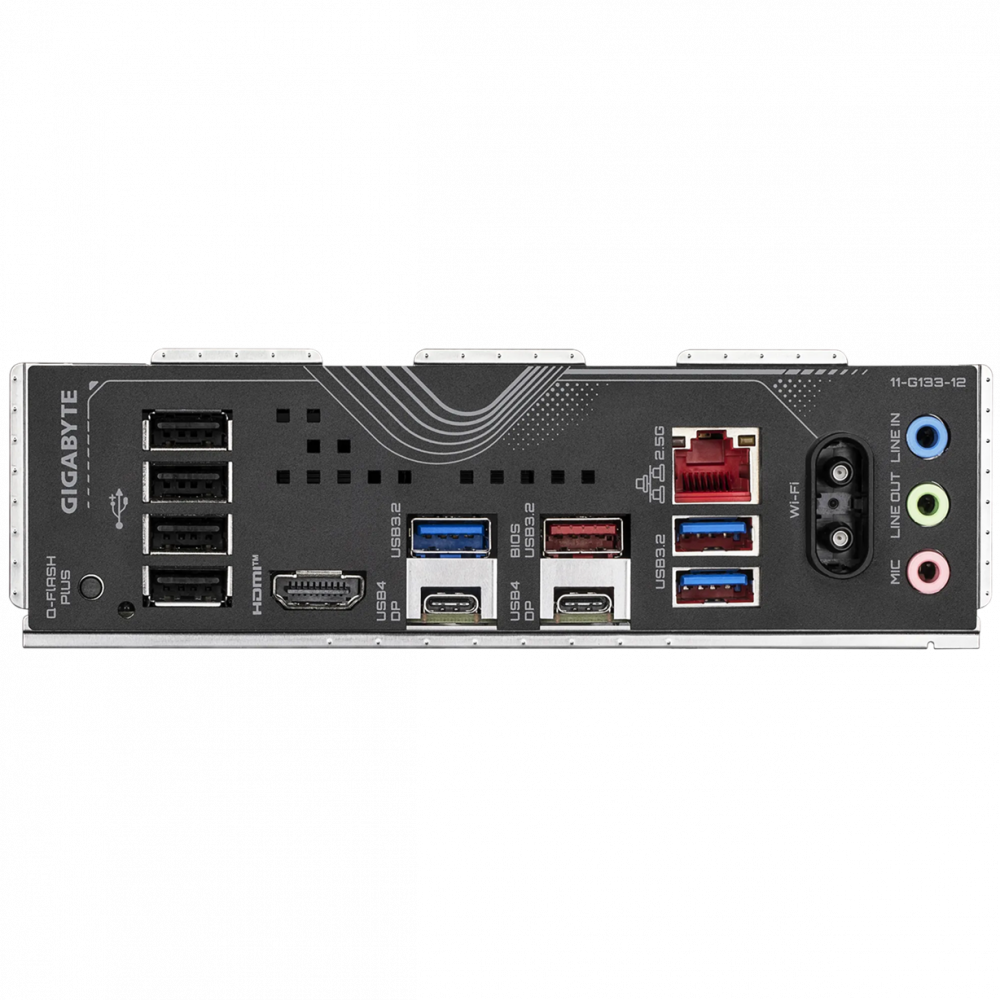

| Портове: | CPU+ASMedia USB4® controller;- 2 x USB4® USB Type-C® ports on the back panel;CPU;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB 3.2 Gen 1 port on the back panel;CPU+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports on the back panel;Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| BIOS: | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор: | ATX / ATX Form Factor; 30.5cm x 24.4cm |
| Гаранция: | 36 м. |
