| Процесор, тип: | Intel |
| Чипсет: | Intel H610 / Intel® H610 Express Chipset |
| Сокет: | LGA1700 |
| Памет, тип: | DDR4 |
| Памет, честота: | 3200 MHz / Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE"s website for more information.) |
| Памет, слотове: | 2 |
| Максимална памет: | 64 GB |
| Твърд диск, характеристики: | Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support); - 4 x SATA 6Gb/s connectors |
| Мрежа: | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps |
| Безжична мрежа: | Не |
| Звук: | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| Слотове: | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Слот М.2: | 1 |

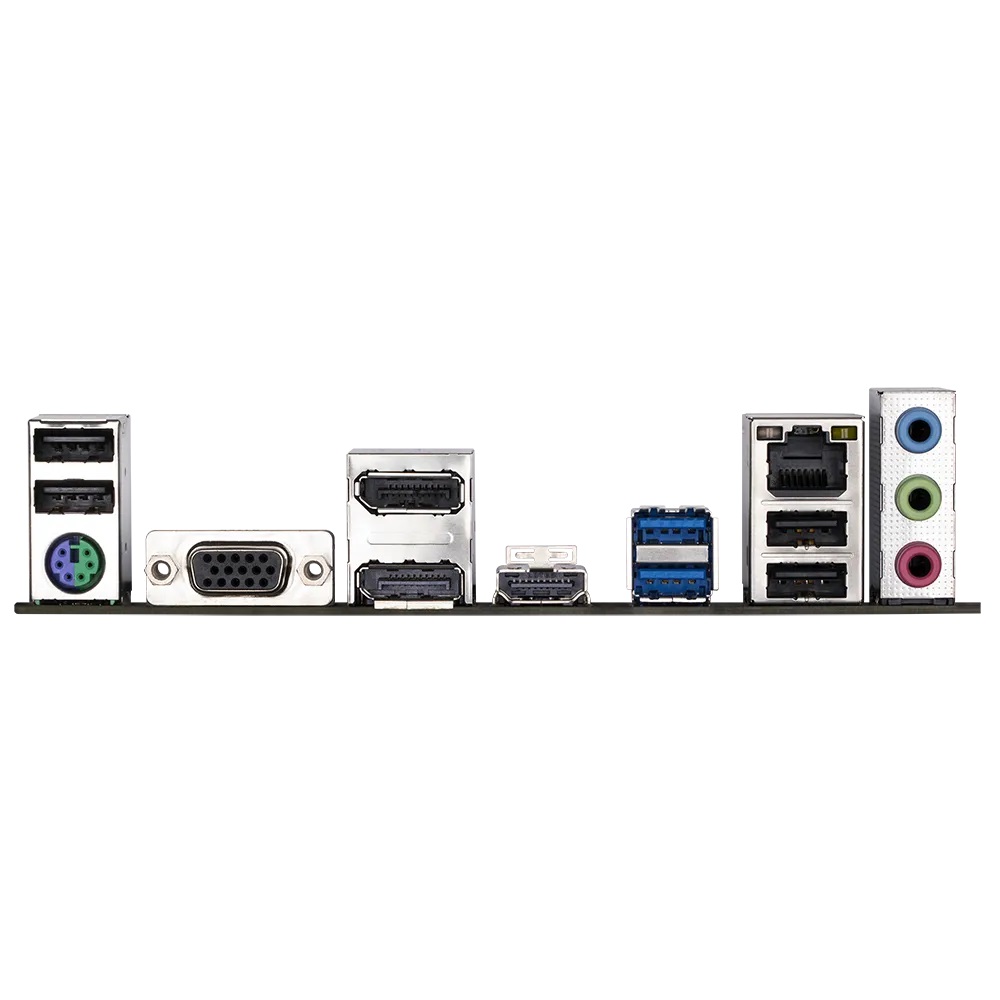

| Портове: | 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 2 x DisplayPorts; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks |
| BIOS: | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор: | Micro ATX / Micro ATX Form Factor; 22.3cm x 19.3cm |
| Гаранция: | 36 м. |
