| Процесор, тип: | Intel |
| Чипсет: | Intel B760 / Intel® B760 Express Chipset |
| Сокет: | LGA1700 |
| Памет, тип: | DDR4 |
| Памет, честота: | 4400 MHz / Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules;4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE"s website for more information.) |
| Памет, слотове: | 4 |
| Максимална памет: | 128 GB |
| Твърд диск, характеристики: | CPU;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Raid: | Да / RAID 0, RAID 1, RAID 5, and RAID 10 |
| Мрежа: | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Безжична мрежа: | Не |
| Звук: | Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| Слотове: | CPU;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Слот М.2: | 2 |

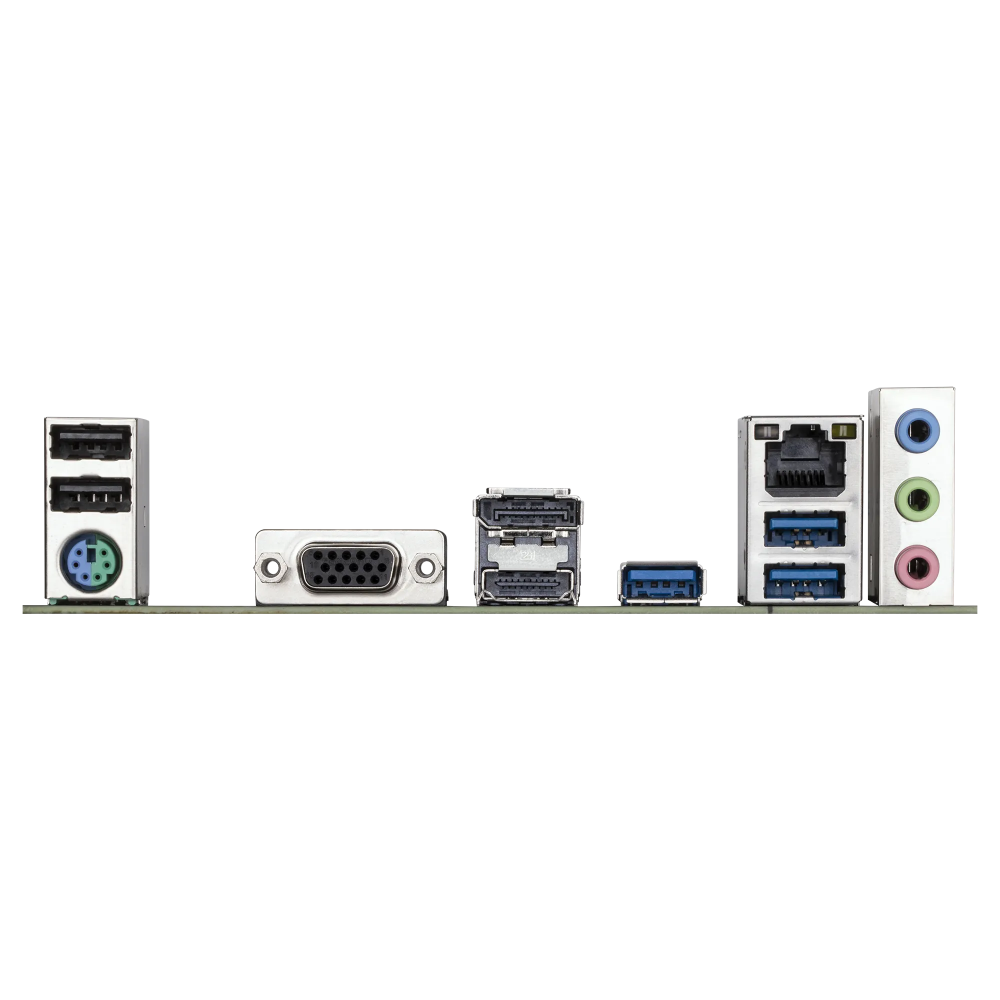

| Портове: | Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub;- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| BIOS: | 1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Форм фактор: | Micro ATX / Micro ATX Form Factor; 24.4cm x 24.4cm |
| Гаранция: | 36 м. |
