| Процесор, тип: | Intel |
| Чипсет: | Intel B760 / Intel® B760 Chipset |
| Сокет: | LGA1700 |
| Памет, тип: | DDR5 |
| Памет, слотове: | 4 |
| Максимална памет: | 192 GB |
| Твърд диск, характеристики: | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel®Core™Processors (14th& 13th& 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode); Intel®B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports |
| Мрежа: | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Безжична мрежа: | Не |
| Звук: | Realtek 7.1 Surround Sound High Definition Audio CODEC; Supports: Jack-detection, Multi-streaming,; Front Panel Jack-retasking; Supports up to 24-Bit/192 kHz playback; Audio Features; Audio Shielding; Rear optical S/PDIF out port; Premium audio capacitors; Dedicated audio PCB layers |
| Слотове: | Intel®Core™Processors (14th& 13th& 12th Gen); 1 x PCIe 5.0 x16 slot; Intel®B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot |
| Слот М.2: | 3 |

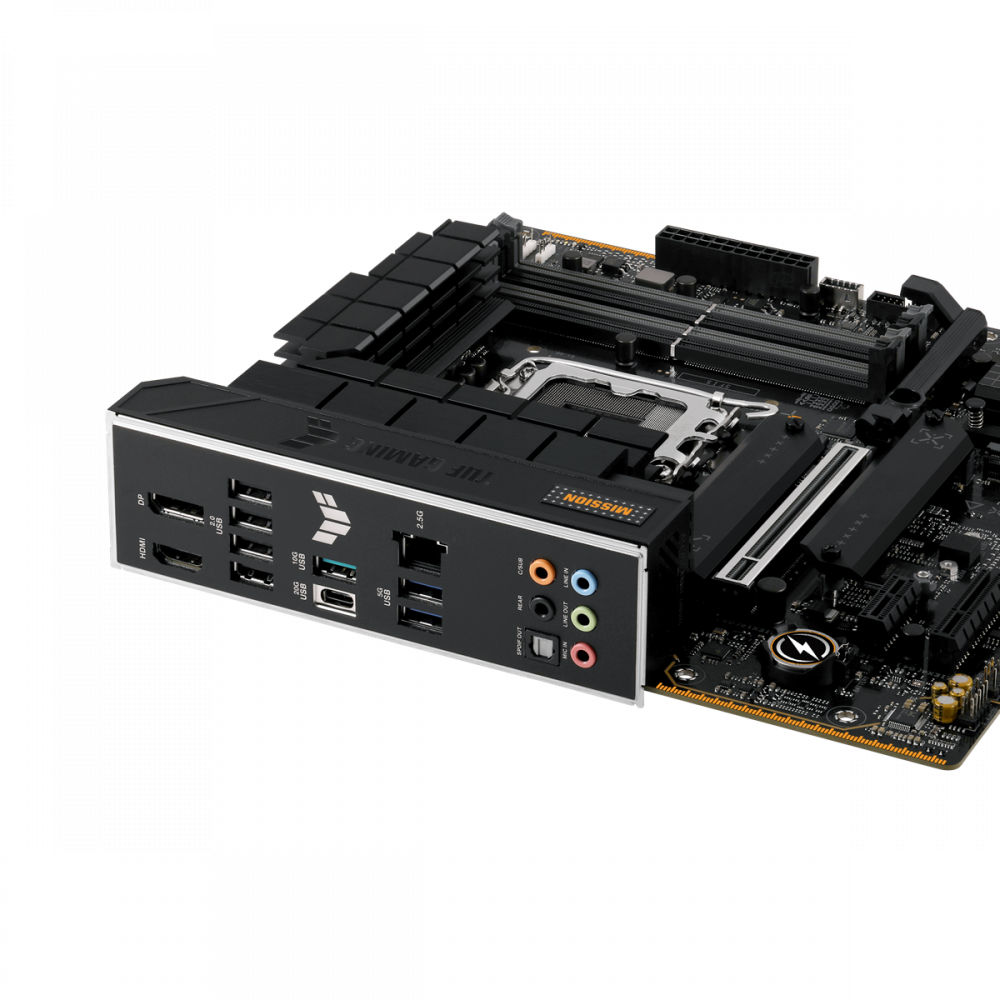

| Портове: | Back Panel I/O Ports; 1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Форм фактор: | Micro ATX / micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Гаранция: | 36 м. |
