| Процесор, тип: | Intel |
| Чипсет: | Intel Z890 / Intel® Z890 Chipset |
| Сокет: | LGA1851 |
| Памет, тип: | DDR5 |
| Максимална памет: | 192 GB |
| Твърд диск, характеристики: | Supports up to 6 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) *-M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**;-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® Z890 Chipset;-M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) ;-M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);-4 x SATA 6Gb/s ports ;SlimSAS connector supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. ;* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5;** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. |
| Raid: | Да / RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0 |
| Мрежа: | 1 x Intel® 2.5Gb Ethernet;1 x Realtek 5Gb Ethernet;ASUS LANGuard |
| Безжична мрежа: | Не |
| Звук: | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel";Audio Features ;- SupremeFX Shielding Technology;- ESS® ES9219 QUAD DAC;- Gold-plated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Слотове: | Intel® Core™ Ultra Processors (Series 2)*;-1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x1 slot**;When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. |
| Слот М.2: | 1 |

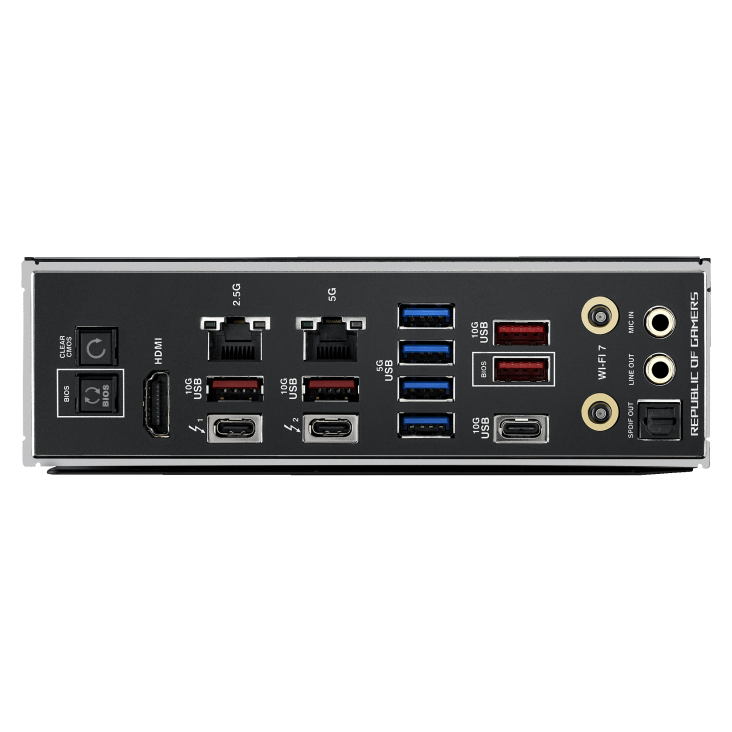

| Портове: | 1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;1 x Realtek 5Gb Ethernet port;2 x Gold-plated audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button ;1 x Clear CMOS button;Rear USB (Total 11 ports);2 x Thunderbolt™ 4 ports (2 x USB Type-C®);5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)4 x USB 5Gbps ports (4 x Type-A);Front USB (Total 10 ports);1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**;1 x USB 10Gbps connector (supports USB Type-C®);2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;* USB Type-C® power delivery output: max. 5V/3A;** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A;2 x Thunderbolt™ 4 USB Type-C® ports;5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®);4 x USB 5Gbps ports (4 x Type-A) |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| Форм фактор: | ATX / ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Гаранция: | 36 м. |
