| Процесор, тип: | AMD |
| Чипсет: | AMD X570 / - AMD X570 |
| Сокет: | Socket AM4 |
| Памет, тип: | DDR4 |
| Памет, честота: | 4400 MHz / Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots; AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / |
| Памет, слотове: | 4 |
| Твърд диск, характеристики: | - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*; - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* |
| Raid: | Да / RAID 0, RAID 1 and RAID 10 |
| Мрежа: | - Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I211AT; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE |
| Безжична мрежа: | Не |
| Звук: | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - ELNA Audio Caps; - PCB Isolate Shielding; - Individual PCB Layers for R/L Audio Channel |
| Слотове: | AMD Ryzen series CPUs (Vermeer, Matisse); - 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*; AMD Ryzen series CPUs (Renoir, Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1))*; AMD Ryzen series CPUs (Picasso); - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*; AMD X570 Chipset; - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3))*; - 2 x PCI Express 4.0 x1 Slots; - Supports AMD Quad CrossFireX™ and CrossFireX™; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |

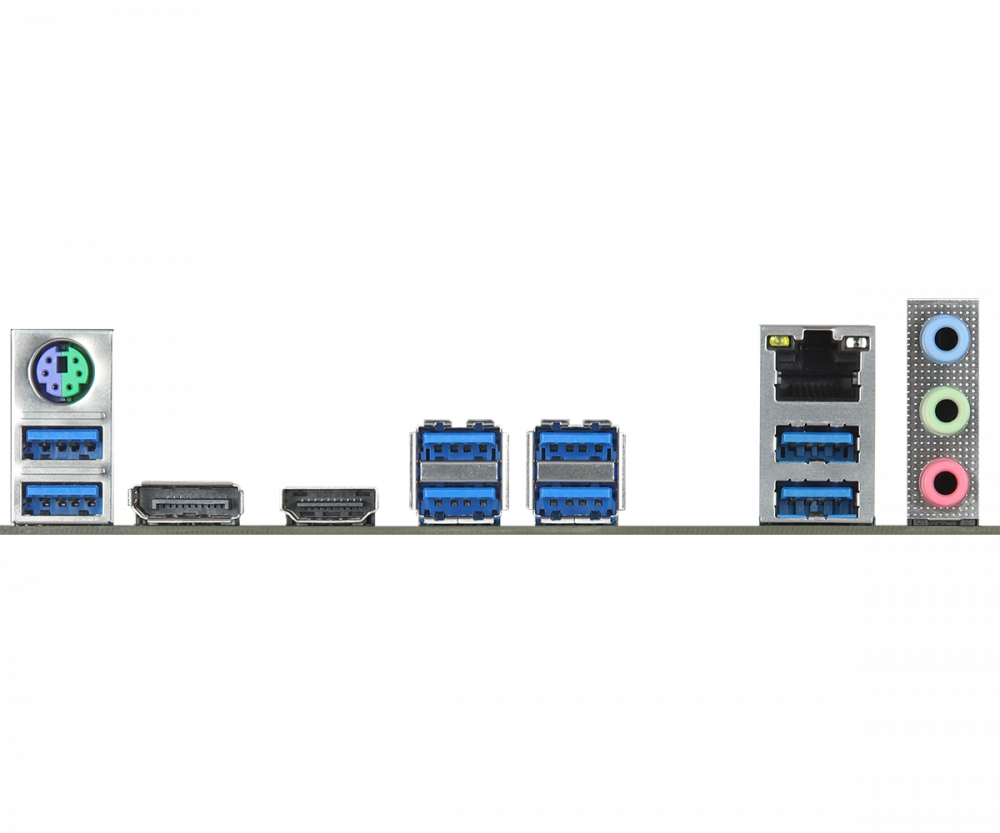

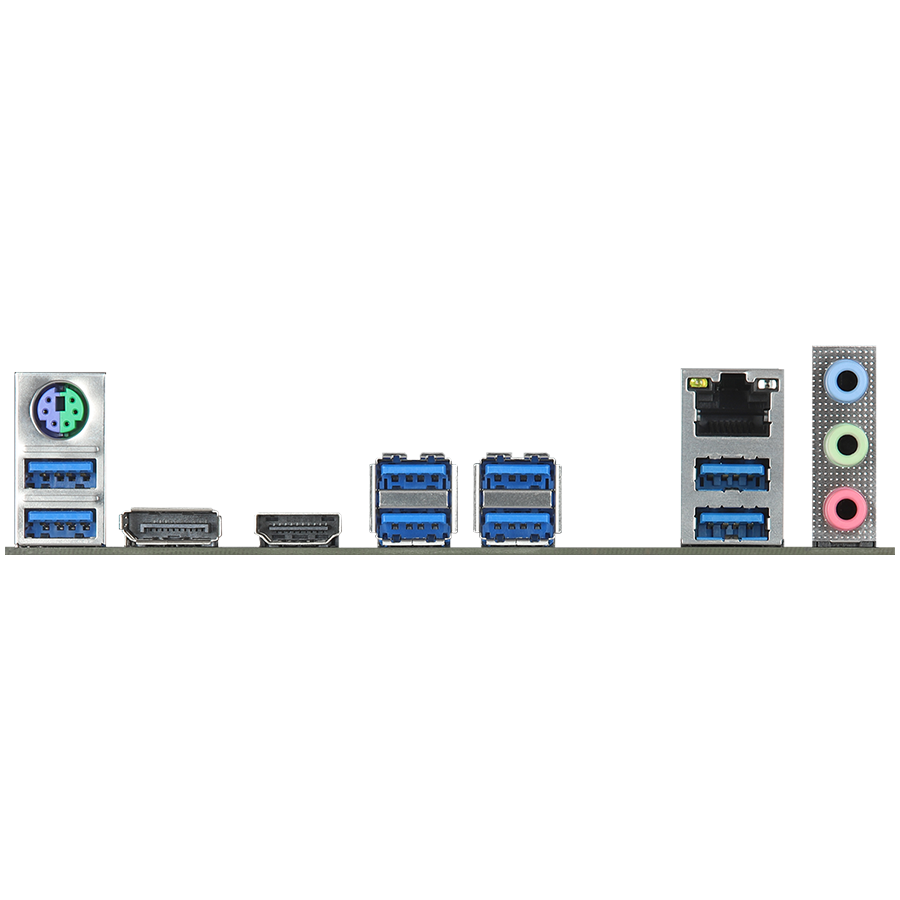

| Портове: | - 3 x Antenna Ports (on I/O Panel Shield); - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.2; - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection); - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone |
| BIOS: | - 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment |
| Форм фактор: | ATX / - ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm; - Solid Capacitor design; - 2oz Copper PCB |
| Гаранция: | 36 м. |
